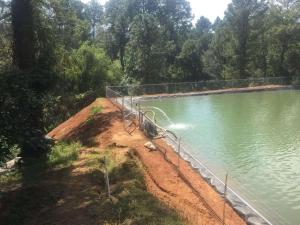

Single phase JNTECH hybrid 1HP Floating Solar aerator Solar Pumping Inverter Fanless IP65 less panels
Solar pumping system consists of four parts: solar panels, solar pumping inverter,AC pump and water storage device.
The power range of sola pump we could do for pump is 0.37KW to 165KW;
Matching power of JNTECH Solar pumping inverter with AC water pump is 1:1;
Matching power of Pump with solar panels is 1 :1.3 to 1.4;
Self-design and producing accesseries for optional functions, like AC input function, battery charge function, monitoring function etc.
Single Phase Solar aerator Technical Data
| Max. Input DC voltage |
440Vdc |
| Recommended MPPT voltage |
120-400Vdc |
| Max. Input DC current |
9A |
| Max. MPTT efficiency |
99% |
| Number of Strings |
2 |
| Max. applicable motor output power |
1.1KW |
| Rated output voltage |
220-240Vac; single phase |
| Output frequency range |
0-50/60Hz |
| Rated output current |
9A |
| Dimension(W/H/D) |
350mm*278mm*179mm |
| weight |
9.5KG |
| Max. efficiency |
98% |
| Protective class |
I |
| Protection degree |
IP65 |
| Environment temperature |
-25ºC-+60ºC; above 50ºC need derate operation |
| Cooling method |
Force cooling |
| Display |
LCD |
| Communication interface |
RS485/GPRS |
| Altitude |
3000m; above 3000m need derate operating |
| Noise emission |
<50dB |
| compliance |
EN50178; IEC/EN62109-1; IEC61800 |
| Warranty |
5 years |
JNP1K1LS Solar Pumping Inverter features:
1. IP65 Outdoor install design;
2. Soft start design, can protect pump for rush current;
3. LCD display shows different parameters with system status;
4. Can handle ambient temperature up to 50℃ and Max. relative humidity > 90%;
5. 3 or 5 years warranty for JNTECH solar pump inverter;
6. With DC switch, no need extra DC breaker when system installation;
7. Automatically dry protection, with water level sensor module for automatic tank level control;
8. No need derate power capacity for pump matching, matching power with pump is 1:1.
9. Full protection, like Input reverse protection, lightning & surging protection, automatic adjust phase sequence,
Default phase protection, auto dry run protection, over-heating protection, etc.
Water Pump
Model: SJ8-5, single phase; A.C
With rated lift head 19m;
Rated water flow 8m3/h
Rated output voltage: 220Vac, 60Hz
Motor: 1.1KW
Protection level: IP68
Material: all 304 stainless steel (include impeller)
Insulation class: F
Inner Package: one Ply-wooden case
Net weight: 19KGS
Solar Panels
Poly-Crystal; Class A,
Pmax=300Wp
connection method:
4 pieces in series, in 1 parallels;
Total Power:1200w
Package: 1 Ply-wooden Box
